• Audio - 6 Speakers
• Blis W/Cross Traffic Alert
• Brakes - Anti-Lock System
• Ford App
• Ford Co-Pilot360
• Lane Keeping System
• Modem
• Pre-Collision Assist W/Aeb
• Rear View Camera
• Remote Keyless Entry
• Remote Start System
• Sync4a

• 1Touch Up/Down Dr/Pass Win
• 2Nd Row Fold Bench
• 2Nd Row Under Seat Storage
• 8" Cluster Display
• Auto-Dim Rearview Mirror
• Carpet Flooring
• Dual Visor Vanity Mirrors
• Locking Glove Box
• Power Locks And Windows
• Powerpoints-12V, Usb
• Tilt/Telescope Str Column

• Airbags - Safety Canopy
• Belt-Minder Chime
• Ctr High Mount Stop Lamp
• Latch Child Safety System
• Securilock Anti-Theft Sys
• Tire Pressure Monit Sys

Equipment Group 300A Discount

Sport Appearance Package

Trailer Tow Package

Ford Co-Pilot360®

Black Appearance Package

Advanced Towing Package

XLT High (301A)

• Mileage
• Fuel Economy Est-Combined (MPG): 22 (2025)
• EPA Fuel Economy Est - City (MPG): 20 (2025)
• EPA Fuel Economy Est - Hwy (MPG): 24 (2025)
• Weight Information
• Base Curb Weight (lbs): 4462
• Gross Axle Wt Rating - Front (lbs): 3130
• Gross Axle Wt Rating - Rear (lbs): 3570
• Curb Weight - Front (lbs): 2547
• Curb Weight - Rear (lbs): 1916
• Gross Vehicle Weight Rating Cap (lbs): 6270
• Gross Combined Wt Rating (lbs): 12588
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Short And Long Arm
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: P255/70SR17
• Rear Tire Size: P255/70SR17
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 42.5
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18
• Exterior Dimensions
• Wheelbase (in): 128.7
• Length, Overall (in): 210.6
• Width, Max w/o mirrors (in): 75.5
• Height, Overall (in): 74.4
• Ground to Top of Load Floor (in): 34.7
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 59.6
• Cargo Box Width @ Top, Rear (in): 62.4
• Cargo Box Width @ Floor (in): 62.4
• Cargo Box Width @ Wheelhousings (in): 48.2
• Cargo Box (Area) Height (in): 20.8
• Tailgate Width (in): 55.6
• Cargo Volume (ft³): 48.5

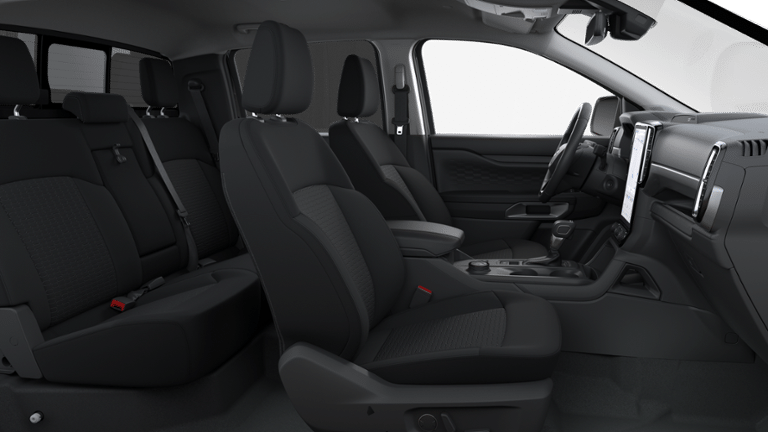

• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 43.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 55.9
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.6
• Second Shoulder Room (in): 56.7
• Second Hip Room (in): 54.1
• Summary

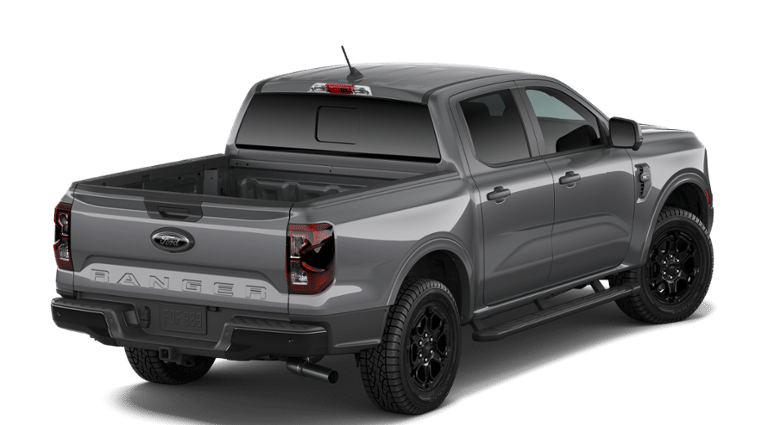

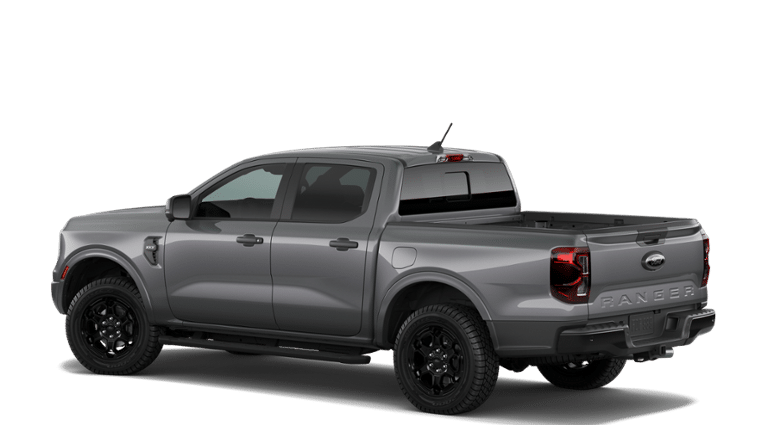

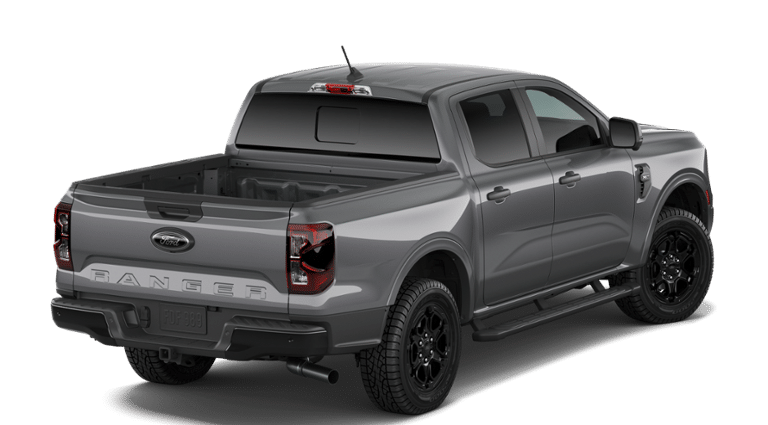

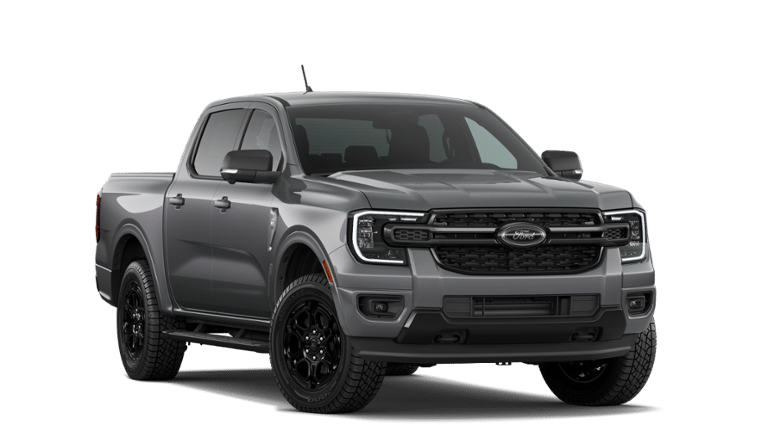

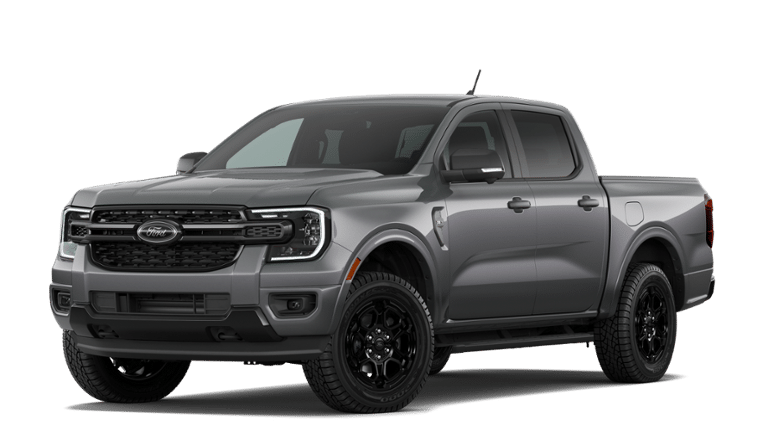

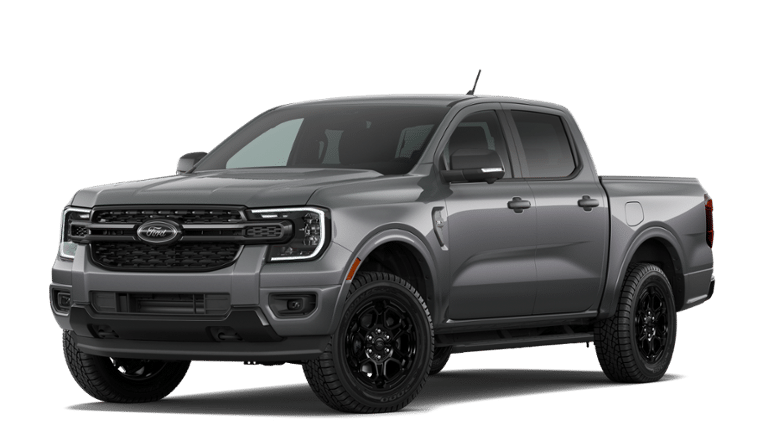

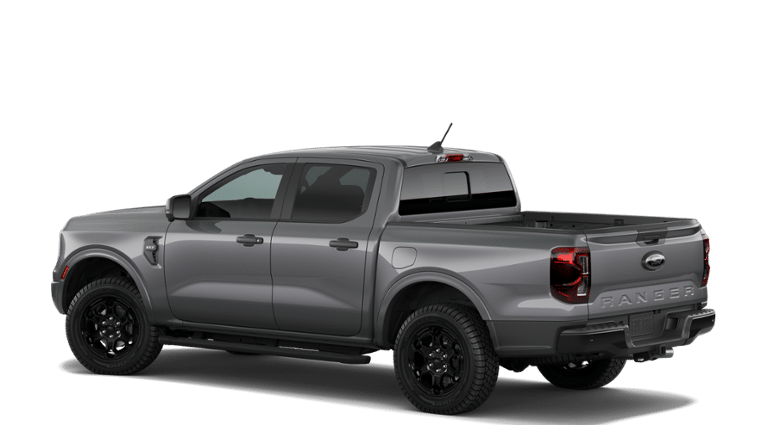

• Vehicle Name: Ford Ranger
• Body Style: SuperCrew
• Body Code: T
• Emissions
• EPA Greenhouse Gas Score: 5.0 (Est)
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.0 (2025)
